| 起源の場所: | 中国 |
|---|---|
| ブランド名: | XK |
| 証明: | ISO9001 / GB / IEC |
| モデル番号: | 24KV DOFC-2966 |
| 最小注文数量: | 300 - 999部分 |
| 価格: | Negotiation |
| パッケージの詳細: | パッケージの輸出 |
| 供給の能力: | 月額100 /関連キーワード |
| キーワード: | 切り取られる24のkvのドロップアウトのヒューズ | 標準: | GB1208-2006 |
|---|---|---|---|
| 定格電圧: | 24kV | 機械的生活: | 10000 |
| 定格電流: | 100A/200A | ||
| ハイライト: | s&c fuse cutout,cut out 100 amp |
||

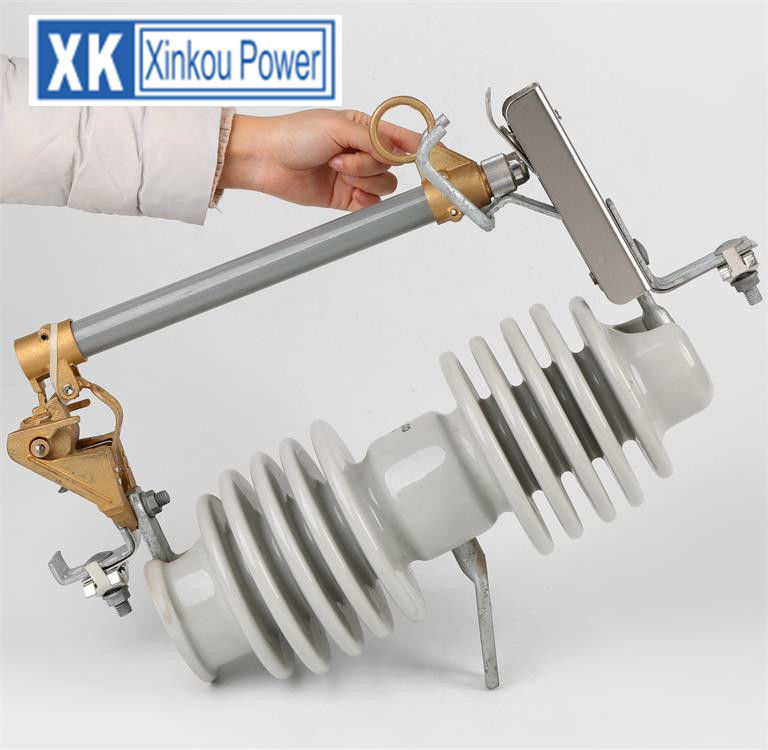

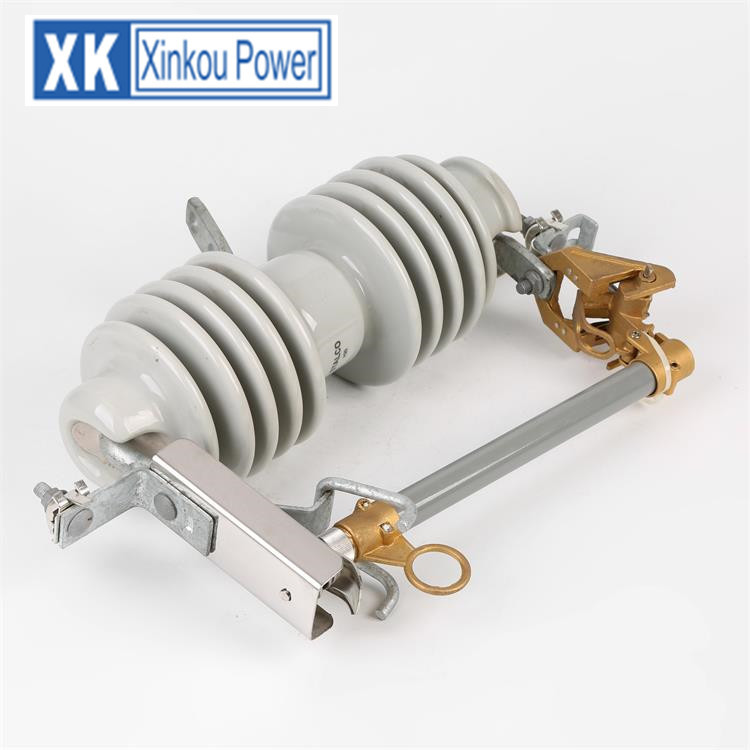

24 kv dropout fuse cut out high voltage fuse for transformer
| Type | PD-11 | PD-11 |
| Rated Voltage(kV) | 24 | 24 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12,000 |
| Impulse voltage(kV) | 150 | 150 |
| Power frequency wihstand voltage(kV) | 65 | 65 |
| Creepage distance(mm) | 540 | 540 |
| Weight(kg) | 4.5 | 4.5 |
| Dimensions(CM) | 51X34X11.5 | 51X34X11.5 |
Q1. Can we have our logo or company name to be printed on your products or the package?
Yes,you can.Logo and company name can be printed on our products by silk screen printing.You can send us the artwork by email in JPEG or TIFF format.
Q2. What is lead time?
Usually 3-15 working days, On-Time delivery
Q3. Why us?
All products comply with the requirements of GB national standards, IC, ANSI and other international standards, and the requirements of company's technology standards.
Q4. How do you make our business long-term and good relationship?
1. Our high quality and competitive price are the most important factors to maintain long-term and good relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q5. Can I have a visit to your factory before the order?
Sure,welcome to visit our factory.
